rock crusher gold ore impact mills




Our Gold Stryker® GS 5000HV is a extreme duty high quality made here in the USA flail impact gold mill that can process and crush up to 5 tons of rock in a day, all the way down to #300 mesh through the mill to release the gold. Perfect for the small gold mining operation. The Gold Stryker® GS 5000HV measures 4 1/2 feet tall and has a footprint of 58" by 54" and uses a HD Honda Industrial Electric Start engine for many years of trouble free use. (The quantity of material the GS can process depends on the size, density and hardness of the rock being fed into the hopper. The smaller the rock, the more material you can run in a day.)

The GS-5000HV is 2 times the size of the GS-4000HD units.


  • Details Include:
  • All Steel Construction.
  • CNC manufactured high carbon steel to extreme tolerances.
  • Complete total adjustable control on size of processed material from #30 mesh to as fine as #400 mesh.
  • Processes up to 4.5 inch rock into #300 powder.
  • (2) High volume 3.25" stainless steel discharge tubes.
  • High Output HD HP Honda Industrial Engine.
  • Electric Start Engine optional.
  • ASV (adjustable speed variable) drive. (Allows you to change the speed at which the hammers swing at. )
  • Click Picture

  • (14) New Strike Force Hammers - 5/8" bolt-on high carbon tool steel - 50% Larger (Easily replaceable with hand tools. See below to order replacements).
  • Heavy Duty 1.625" axle main shaft.
  • Heavy duty fully sealed industrial bearings (with grease fittings) for years of trouble free use.
  • (4) 2" square tubing removable legs with steel plates to bolt down to concrete or wood floor (They are designed to be fully adjustable for uneven ground).
  • Powdercoated with an industrial coating for years of trouble free use.
  • All USA made.
  • Complete and ready to run.
  • Weighs 375 pounds.
  • Shipping to your nearest UPS center anywhere in the lower 48 states! (800) 688-4080

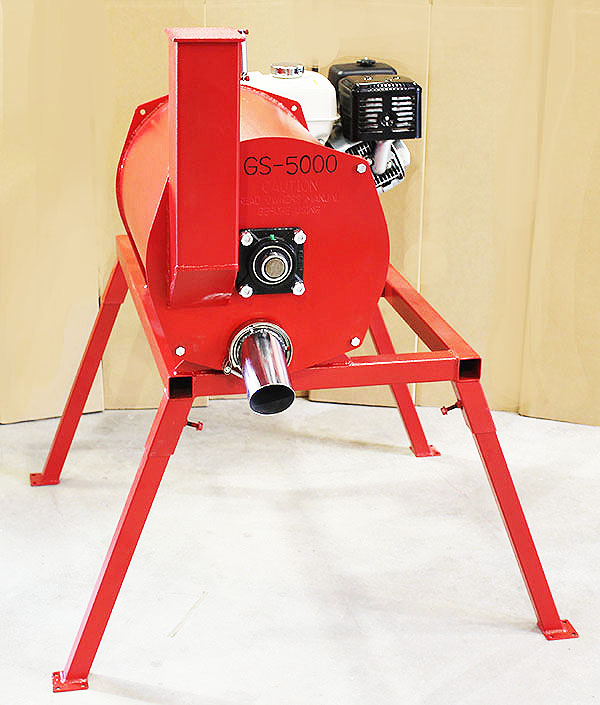

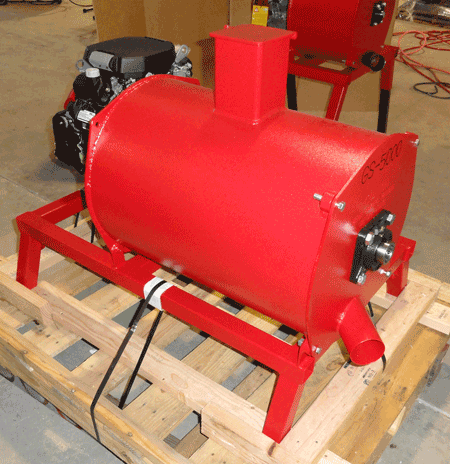

Gold Stryker® GS 5000HV

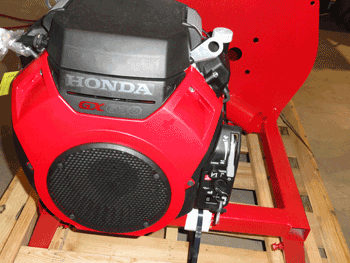

15HP Honda Engine with New Strike Force Hammers

- 50% Larger hardened impact hammers.

$9899.00

$8799 - Sale Through Friday







**$395 crating charge for shipped units plus frieght**





Gold mill impact machine  ore quartz rock crushers







Gold mill impact machine  ore quartz rock crushers



Gold mill impact machine  ore quartz rock crushers

-------



-------Options/Parts for the GS-5000HV:-------------

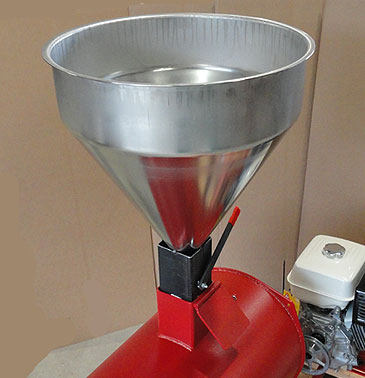

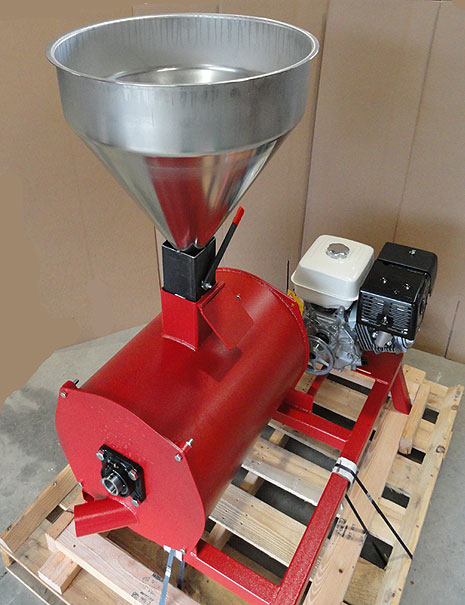

Hopper feed

Click Picture

Made of super high quality stainless steel. Bolts to top of GS 5000HV and allows feeding larger amounts of material.

Part #GS 228

$ 1695.00

Gold mill impact machine  ore quartz rock crushers

Click Picture

New Strike Force Hammers

50% Larger Replacement High Carbon Tool Steel Impact Hammer (28 needed)

Part #GS 500

$57.99 ea.

Gold mill impact machine  ore quartz rock crushers



They are Hardened to a Rockwell High Standard. The advantage to the tool steel hammers is that they will last 15 times longer than chain and will produce a much finer #300 mesh or smaller product, than the chains do.

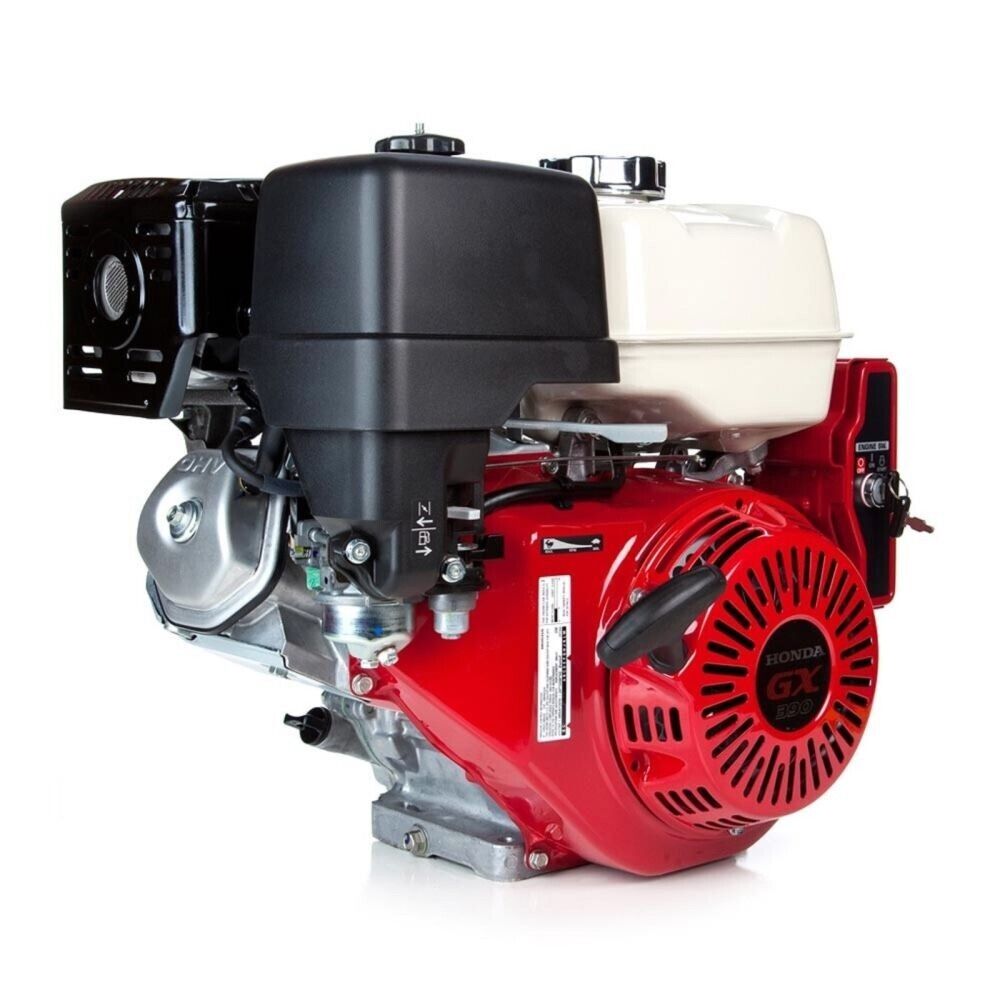

Electric Starter Kit

This is an electric start option for your GS 5000HV that normally has a pull-start engine.

Part #GS 220

$1495.00



Gold mill impact machine  ore quartz rock crushers







Gold mill impact machine  ore quartz rock crushers

Our gold mill Gold Stryker® mills take these rocks ...

Gold mill impact machine  ore quartz rock crushers

and turns them into this 300 mesh powder...

Gold mill impact machine  ore quartz rock crushers

which releases this gold!





Our units are not cheap E-BAY type machines!

----------- gold mill ore processing machine quartz rock crusher



Our Gold Stryker® units are a serious work horse. Not a small toy for testing a few rocks. They will also process the gold bearing quartz rock much faster that a ball roller mill.

We are located in Northern California. We offer an easy to use secure website for online ordering.

We carry our full line of products in our inventory and are ready to ship your order the same day ordered from our 11000 square foot facility. We ship world wide daily. Many of our customers are located in South America, Canada, Africa, Alaska, The Bahamas and other far away places. If you can see this web page, then we can ship to you!
