rock crusher gold ore impact mills


Our Gold Stryker® GS 4000HV (High Volume) is a high output / dual adjustable discharge / heavy duty version flail impact rock crusher gold mill that is very portable and perfect for the small gold mining operation. It can process and crush up to 3-3.5 tons of material in a day, all the way down to #300 mesh through the mill to release the gold. The Gold Stryker® GS 4000HV measures 4 1/2 feet tall and has a footprint of 44" by 50" and weighs 270 pounds and uses a 13 Horsepower Honda GX Industrial engine for many years of trouble free use. Sale Now $7499.99

(The quantity of material the GS can process depends on the size, density and hardness of the rock being fed into the hopper. The smaller the rock, the more material you can run in a day.)

GS 4000HV (Dual Discharge High Volume)

  • Dual 3 inch fully adjustable discharge tubes. ( Making it move much more material thru the mill at a faster rate )
  • CNC manufactured high carbon steel to extreme tolerances.
  • All Steel Construction.
  • Complete total adjustable control on size of processed material from #30 mesh to as fine as #400 mesh.
  • Processes up to 4.25 inch rock into #300 powder.
  • 13 Horsepower Honda Industrial Engine.
  • 1.125" inch axle main shaft
  • (8) New Strike Force Hammers - 5/8" bolt-on high carbon tool steel - 50% Larger (Easily replaceable with hand tools. See below to order replacements).
  • Click Picture

  • Heavy duty fully sealed industrial bearings (with grease fittings) for years of trouble free use.
  • (4) 2" square tubing removable legs with steel plates to bolt down to concrete or wood floor. (They are designed to be fully adjustable for uneven ground)
  • Powdercoated with an industrial coating for years of trouble free use.
  • All USA made.
  • Complete and ready to run.
  • Shipping available to your nearest UPS center anywhere in the lower 48 states! (800) 688-4080

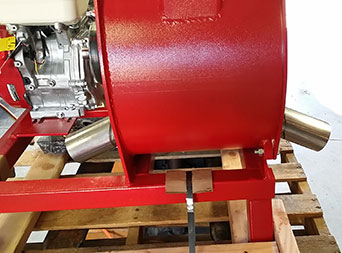

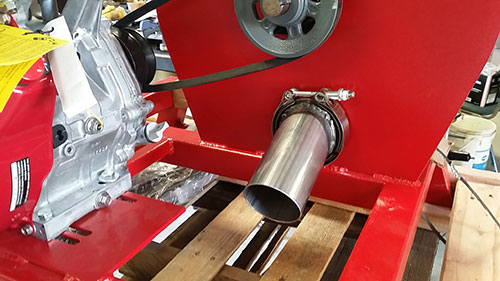

3 inch fully adjustable discharge tubes



Gold Stryker® GS 4000HV (High Volume)

13HP Honda Engine with hardened impact hammers.

$8999.00

$7499 - Sale Through Friday

Gold mill impact machine  ore quartz rock crushers





**$395 crating charge for shipped units plus frieght**






Gold mill impact machine  ore quartz rock crushers



Gold mill impact machine  ore quartz rock crushers



Options/Parts for the GS-4000HV :

Electric Starter Kit

This is an electric start option for your GS4000HV that normally has a pull-start engine.

Part #GS 220

$1295.00



Gold mill impact machine  ore quartz rock crushers





Click Picture

New Strike Force Hammers For

The GS4000HV (They Have 16)

50% Larger Replacement

High Carbon Tool Steel Impact

Hammer.

Part #GS 500

$47.99 Each

Gold mill impact machine  ore quartz rock crushers



They are Hardened to a Rockwell High Standard. The advantage to the tool steel hammers is that they will last 15 times longer than chain and will produce a much finer #300 mesh or smaller product, than the chains do.



Click Picture

Made of super high quality stainless steel. Bolts to top of GS-4000HV and allows feeding larger amounts of material.

Part #GS 268

$ 1295.00

Gold mill impact machine  ore quartz rock crushers







Gold mill impact machine  ore quartz rock crushers

Our gold mill Gold Stryker® mills take these rocks ...

Gold mill impact machine  ore quartz rock crushers

and turns them into this 300 mesh powder...

Gold mill impact machine  ore quartz rock crushers

which releases this gold!





Our units are not cheap E-BAY type machines!

----------- gold mill ore processing machine quartz rock crusher





Our Gold Stryker® units are a serious work horse. Not a small toy for testing a few rocks. They will also process the gold bearing quartz rock much faster that a ball roller mill.

We are located in Northern California. We offer an easy to use secure website for online ordering.

We carry our full line of products in our inventory and are ready to ship your order the same day ordered from our 11000 square foot facility. We ship world wide daily. Many of our customers are located in South America, Canada, Africa, Alaska, The Bahamas and other far away places. If you can see this web page, then we can ship to you!
